CE 5l Hdpe Blow Molding Machine Bottle Making

    Buy cheap CE 5l Hdpe Blow Molding Machine Bottle Making from wholesalers

    Buy cheap CE 5l Hdpe Blow Molding Machine Bottle Making from wholesalers
    • Buy cheap CE 5l Hdpe Blow Molding Machine Bottle Making from wholesalers

    CE 5l Hdpe Blow Molding Machine Bottle Making

    Ask Lasest Price
    Brand Name : Sanqing
    Model Number : SQ-11
    Certification : CE ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

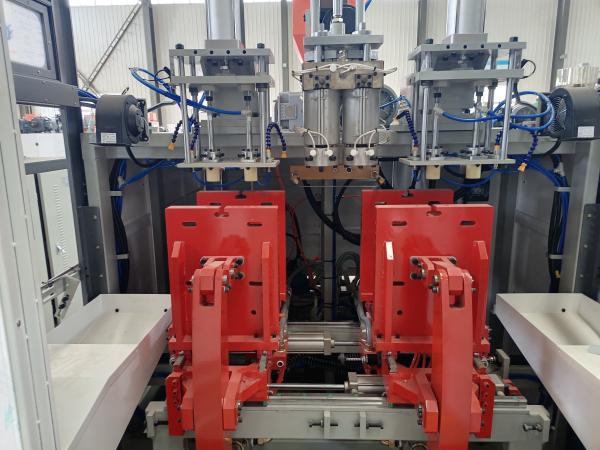

    CE 5l Hdpe Blow Molding Machine Bottle Making

    Product Name

    5L Automatic Toggled Type Clamping Blow Molding Machine, Bottle Making Machine


    Product Description

    This type of machine is able to make products like ocean balls, pitballs, milk bottles, wet wipe canisters, laundry detergent bottles, etc.


    This machine has been our company's traditional advantage within the industry. We have taken a large part of market proportion in south of the country.


    With our brand-new design on the machine appearances, the machine has got the opportunity to reshow its brilliancy in the near future.

    SystemItemUnitBasic Parameters
    BasicPlastic fit forPE/PP
    Max hollow product volumeL5
    No. of Die headSET1
    Size(LxWxH)M3.5*2.1*2.2
    WeightTON5
    No. of Working StationSet2
    MoldsClamping ForceKN120
    Template DistanceMM220--620
    Template Stroke400
    Max template size(WxH)MM480*500
    Mould thicknessMM225—300
    Extrusion Systemscrew diameterMM75 or 65
    Screw L/D ratioL/D25:1
    (HDPE)Plasticizing capacityKG/H70
    Screw heating zoneZONE4
    Screw heating powerKW16
    Extrusion motor's powerKW22
    Die headDie head heating zonezone3
    Die head heating powerKW9
    Sprue-die dia.(max)mm180
    Oil-pump motor powerKW11
    air pressureMpa0.6--0.8
    Average powerKW35
    Compressed air dosagem³/min1.5--2.5
    Cooling water dosageL/min3--5
