    3 Ltr Jerry Can Blow Molding Machine PE Plastic Jerry Can Making Machine 6000kg

    Ask Lasest Price
    Brand Name : Sanqing
    Model Number : SQ-11
    Certification : CE ISO
    Payment Terms : L/C, T/T
    Supply Ability : 50 SET/Month
    Delivery Time : 45 Days
    • Product Details
    • Company Profile

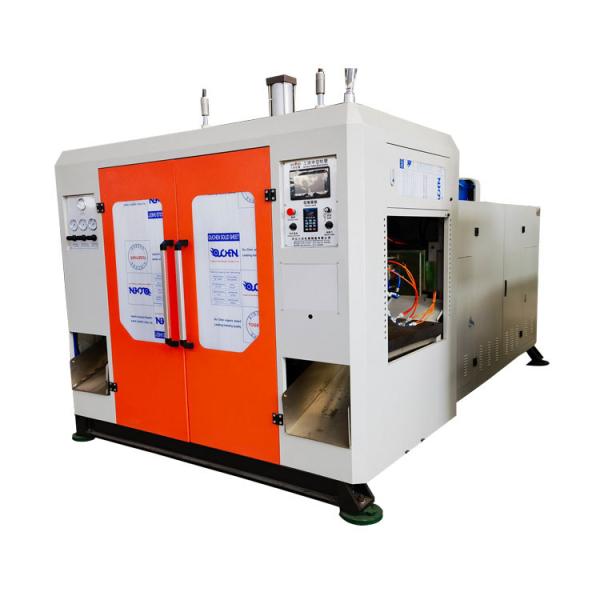

    3 Ltr Jerry Can Blow Molding Machine PE Plastic Jerry Can Making Machine 6000kg

    Product Name

    3 Liter 5 Liter 10 Liter Plastic Jerry Can Hydraulic Blow Molding Machine

    Product Description

    Sanqing blow molding machines could cover 1ml to 100L, so above 2 Liter, necessary to have hydraulic powered machine to achieve qualified product. This type of hydraulic powered blow molding machine is able to produce until 5 Liter. The application could be water bottles, jerry cans, oil bottles and etc.

    The machine is suitable to produce single layer, three layer and viewline bottles, it is good to produce plastic material such as HDPE/PP/LDPE.

    This machine is controlled by PLC system, the working speed could be adjusted by operators over touch screen.


    SPECIFICATIONS FOR 5 L Blow Molding Machine




    Product Range
    Max. Product Volume
    5 L
    Product Max. Dia.
    18 CM
    Thickness of Mould
    150-220 mm
    Width of Mould Board
    303 mm
    Distance of Mould Board
    230 mm
    Production Speed
    200-300 PCS/HR
    Applicable Raw Material
    HDPE/LDPE/PP
    Distance of Mold
    160-500 mm
    Force of Closing Mold
    60 KN
    Machine Parameters
    Screw Dia.
    75, 80, 90 mm
    Screw Rod Length/Dia. Ratio
    25:1
    Speed Control Method
    PLC
    Energy Consumption
    Heating Power
    15 KW
    Hydraulic Pump Power
    4.5 KW
    Extruder Motor Power
    18.5 KW
    Air Consumption
    0.6 m3/Min.
    Machine Dimension and
    weight
    Dimension
    1960x1180x1960mm
    Weight
    4.5 Ton


    3 Ltr Jerry Can Blow Molding Machine PE Plastic Jerry Can Making Machine 6000kg
