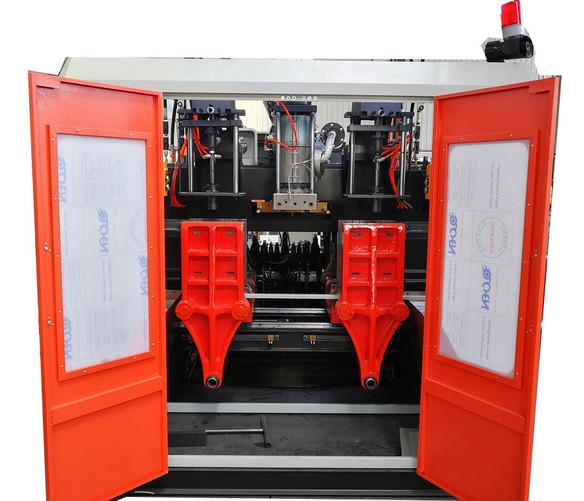

    Dia 30cm Plastic Container Blowing Machine 57KW 5 Ltr Blow Moulding PLC Control

    Ask Lasest Price
    Brand Name : Sanqing
    Model Number : SQ-11
    Certification : CE ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Dia 30cm Plastic Container Blowing Machine 57KW 5 Ltr Blow Moulding PLC Control

    Product Name

    5L 10L HDPE Plastic Container Blowing Machine Price, High Quality Blow Molding Machine


    Product Description

    Product Application

    Sanqing blow molding machines could cover 1ml to 100L, so above 2 Liter, necessary to have hydraulic powered machine to achieve qualified product. This type of hydraulic powered blow molding machine is able to produce until 5 Liter. The application could be water bottles, jerry cans, oil bottles and etc.

    The machine is suitable to produce single layer, three layer and viewline bottles, it is good to produce plastic material such as HDPE/PP/LDPE.

    This machine is controlled by PLC system, the working speed could be adjusted by operators over touch screen.


    SPECIFICATIONS FOR 10 L Blow Molding Machine




    Product Range
    Max. Product Volume
    10 L
    Product Max. Dia.
    30 CM
    Thickness of Mould
    400 mm
    Width of Mould Board
    450 mm
    Distance of Mould Board
    400 mm
    Production Speed
    200-300 PCS/HR
    Applicable Raw Material
    HDPE/LDPE/PP
    Distance of Mold
    400 mm
    Force of Closing Mold
    80 KN
    Machine Parameters
    Screw Dia.
    80 mm
    Screw Rod Length/Dia. Ratio
    25:1
    Speed Control Method
    PLC
    Energy Consumption
    Heating Power
    16 KW
    Hydraulic Pump Power
    11 KW
    Extruder Motor Power
    22 KW
    Air Consumption
    0.6 m3/Min.
    Machine Dimension and
    weight
    Dimension
    4200x 220x2800mm
    Weight
    8 Ton
