    Soft LDPE Pool Toy 3PH Double Station Blow Molding Machine

    Ask Lasest Price
    Brand Name : Sanqing
    Model Number : SQ-11
    Certification : CE ISO
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

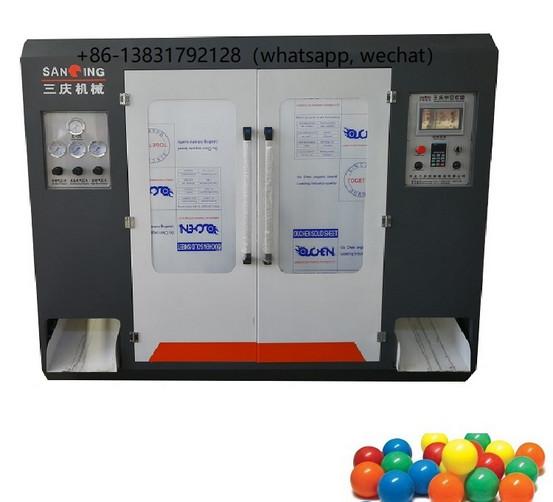

    Soft LDPE Pool Toy 3PH Double Station Blow Molding Machine


    Name

    Soft LDPE Pool Toy Plastic Ball Pits Balls Making Machine Blow Moulding Machine


    Product Description
    whatsapp wechat 0086 15530731271; william_sanqing@126.com

    Production capicity 2000 pcs to 2500 pcs per hour

    Full automatic Double heads double workstation : 6 TO 8 cavity

    The ball sizes from 50 to 80mm,the weight from 3 to 12grams.

    Average working Power: (15KW/H)


    This Machine is Hydraulic system to close molds and pneumatic system to move molds. It also has unattached electric cabinet ,PLC computer control, easy to operate. This machine also finished the product and Stripping automatically, no need people .

    1,Screw Diameter) : 65mm

    2, (L/D ratio) : 25:1

    3, (Motor Power) : 15kw

    4, (Screw Speed) :20-60r/min

    5,(Max. Plasticizing capacity) : 60kg/h

    6, (No. of die head) :2

    7, (Distance of die head center) :110mm

    8, (Max. Clamping force) :35KN

    9, (Working Pressure) :0.6-0.8Mpa

    10, (Max. bottle volume) :3000ml

    11, (Weight):3500kg

    12, (Way of control):(PLC computer control)

    13, (Way of control speed):(Frequency control)

    14,(Size):L*W*H=2.5M*2.1M*1.7M)

    15,(Average Power): (15KW/H)

    Full Automatic Seaball Blowing Machine:
