Rotational Jelly Bottle PE Plastic Bottle Blow Molding Machine 1300kg

Ask Lasest Price
Brand Name :	Sanqing
Model Number :	SQ-10
Certification :	CE ISO9001
Price :
Payment Terms :	L/C, T/T
Supply Ability :	100 sets/month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

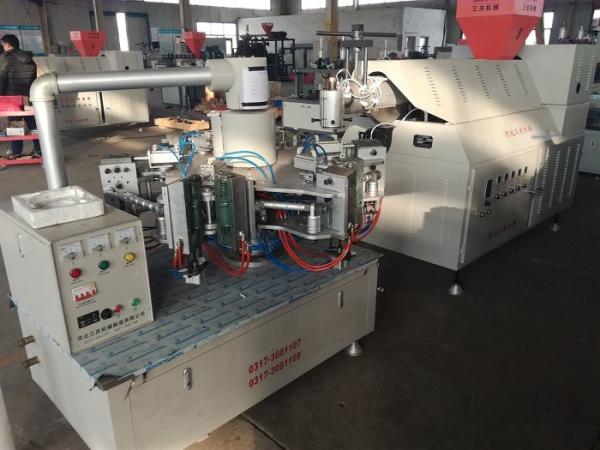

Rotational Jelly Bottle PE Plastic Bottle Blow Molding Machine 1300kg

Product Name

Rotational Fruit Jelly Bottles Blowing Machine, Blow Molding Machine for Ice lolly

Product Description

ice pop bottle blowing machine with 5000 pcs per hour by vertical rotational machine

In case customer needs different weight of product, our machine have device to adjust weight follow customer requirement.

Our rotational machine is the fastest machine to produce LDPE products, because our machines are using 4 molds, 6 molds, 8 molds, 10 molds, 12 molds to produce at the same time. The production capacity of 6 molds machine could reach 3000 pieces per hour. 10 moulds machine could reach 5000 pcs per hour.

10 moulds machine are deisgned for produce ice lolly tubes and some LDPE products.

We provide different level of price to cater customer demand, we have connected type(extruder and blower), separate type(extruder and blower not connected), full automatic type, semi-automatic type of machines. We also have devices to de-flashing the waste part of bottle.

Main Components:

1. Gear Box

2. Frequency Control Inveter

3. Pneumatic Power

4. Temperature Controller

5. Moulds

6. Proximity Switch

7. Air Cylinders

8. Motors for extruder and Rotator

9. Screw from extruder

Parameter

Model Parameters	4 work station	6 work station	8 work station
Max. Volume of Bottle(ml)	1000	1500	1500
Max. Dia. Of Bottle(cm)	7	10	10
Productive capacity(pcs/hour)	500-7000	1000-8000	1500-8000
Mould Size (L, W, H) (mm)	118x120x350	118x120x350	118x120x350
Motor Power(KW)	0.75	1.1	1.5
Air Consumption(m3/Min)	0.4
Product Weight(KG/Hour)	400	800	1000
Dimension(L, W, H)(mm)	1400x1000x1400	1600x1200x1500	1900x1700x1400
Applicable Raw Material	PE, PP, PVC
Speed regulating method	Frequency control of motor speed
