    Dia 50mm Corrugated Pipe Machine 1m Pipe Pneumatic Molding Machine 15kW

    Ask Lasest Price
    Brand Name : Sanqing
    Model Number : SQ-9
    Certification : CE ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

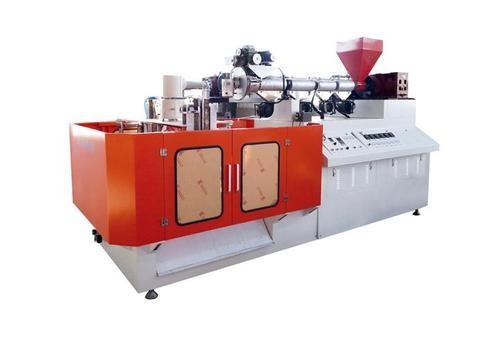

    Dia 50mm Corrugated Pipe Machine 1m Pipe Pneumatic Molding Machine 15kW

    Name
    Pneumatic Corrugated Tube Blow Molding Machine Price
    Product Description

    This machine is the first invented patent product in China, it could manufacture the sewer pipes, washing machine tubes, seeder pipes which made by PE/PP material. Auto loading material, auto blowing, auto out of moulds, it achieved full automatic process. The final tube length could be 1 meter. Quality is stable. Production capacity 500-600 pcs/hr. Every shift one person, exported to foreign countries also.


    Sanqing Blow Molding Machine could produce machine for sewer pipes, which could be used under basin of the kitchen. Or it could be used as washing machine tubes.


    Length of pipe: Max. 1 meter

    Speed of machine: 500-700 pcs per hour

    dia. of pipe: 50mm max.


    Our machineries already sold all over the china, we also export to Mexico, Carribean coutries, south america, south east asia, arab countries, afterican countries.


    Parameter


    ITEMPARAMETER
    the length of the product mm800-1100
    the quantity of the mould head1
    the quantity of the mould2
    production capacity700-800
    screw diameter mm65
    L/D screw L/D25:1
    the max quantity of extrusion HDPE kg/h55
    mould-locking typepneumatic
    the max mould dimension140×100×1200
    blowing pressure mpa0.4-0.6
    gas consumption m3/min0.3
    cooling pressure Mpa0.2-0.3
    the electric power of the extruder machine KW11
    The heating power of the extruder machine KW9.5
    L*W*H mm3400×1400×2200
    weight KG1400
    the suitable raw materialPE/PP
